Visualize Contour-Based Region and Center of Gravity (COG)

Visualizes the character region enclosed by the convex polygon computed using cog_contour. Optionally overlays crosshair lines at the computed center of gravity (COG) to aid interpretation.

Usage

draw_contour(lst, show_cog = TRUE, plot_image = TRUE, cimg = TRUE)

Arguments

lst: A list returned by cog_contour, containing a data frame of polygon points and computed statistics.
show_cog: Logical. If TRUE (default), draws horizontal and vertical red lines through the COG to indicate its location.
plot_image: Logical. If TRUE (default), plots the reconstructed image. If FALSE, returns the image object without displaying it.
cimg: Logical. If TRUE (default) and imager is available, returns a cimg object. If FALSE, always returns a raster object.

Value

If cimg = TRUE and imager is installed, returns a cimg object. Otherwise, returns a raster object (class "raster").

Details

By default (cimg = TRUE), the function returns a cimg object if the imager package is available. If imager is not installed or if cimg = FALSE, a base R raster object created by as.raster() is returned.

Examples

data(img_A) # load example image from the package
result <- cog_contour(img_A)

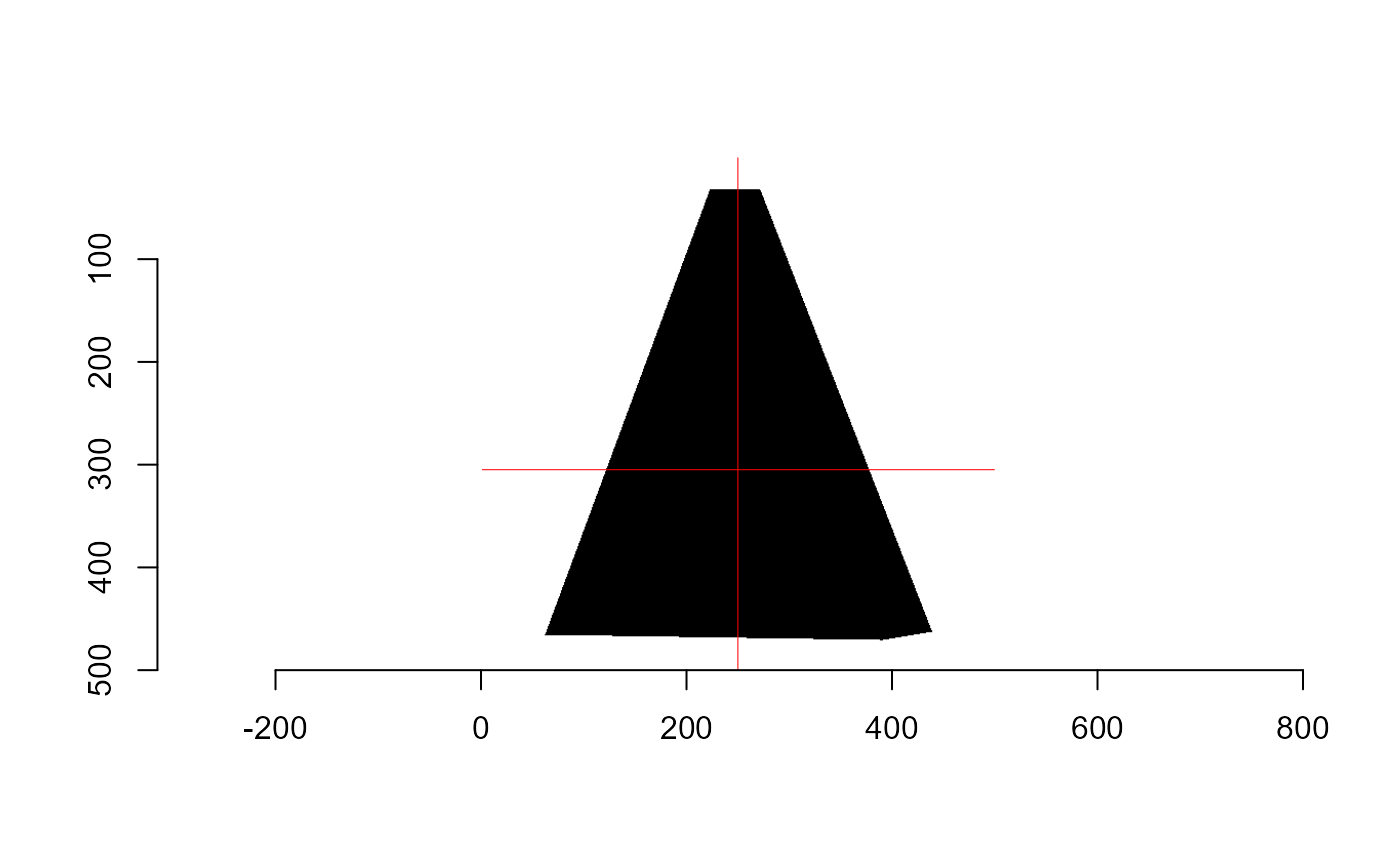

draw_contour(result, show_cog = TRUE, cimg = FALSE)
